Home use 20W 30W Mini Portable fiber laser marker for small business

In order to save international shipping cost ,Dowin laser factory customized This mini fiber laser marker ,use only Raycus Laser generator,small size portable only 15Kgs Net weight.Easy to carry even for a woman.

Features

● In order to save international shipping cost ,Dowin laser factory customized This mini fiber laser marker ,use only Raycus Laser generator,small size portable only 15Kgs Net weight.Easy to carry even for a woman.
● Carton box package ,safe and Environmental friendly.
● The Raycus brand laser source has a normal working life of 100,000 hours. Can use 8-10 years ,
● High precision ,microfiber beam is 0.001mm ,
● 3-years long warranty.

Home use 20W 30W Mini Portable fiber laser marker for small business (3)
Home use 20W 30W Mini Portable fiber laser marker for small business (3)

Video introduction

Mini Fiber laser marker Video introduction

Tech Specifications

Main Technical Parameters of the DW-1390 CO2 laser cutting machine

Model

DW-20FIE               DW-30FIE

Laser Power

20W               30W

Laser Wavelength 1064nm
Laser type Raycus
Marking area 110*110mm ~175*175mm
Marking speed ≤7000mm/s
Repeatability ±0.01mm
Control software EZCAD
Marking Line Width 0.01mm
Indicate light Double red light
Cooling system Air -cooled
Rotary table Option
Graphic format supported AI, DXF, DST, DWG, PLT, BMP, DXF, JPG, TIF, AI etc
Working voltage 110V-220V/50HZ~60HZ
Total consumption 800W
Packing size /Gross weight 75*57*34cm/26Kgs

Note: If your materials is special, dont know which type laser works ,Fiber/CO2/UV laser ,please send it to us ,we offer free testing.

Standard configurations for DW-20FIE Mini Portable fiber laser marker

Aluminum Alloy frame
Raycus Fiber laser generator
Origional BJJCZ mainboardand EZCAD software support Rotary and win7/8/10
High speed SG7110 Digital Galvo scanner with double red pointer
110*110mm-175*175mm Working size
Position bars/testing cards/Goggle/Foot switch free

Home use 20W 30W Mini Portable fiber laser marker for small business (3)

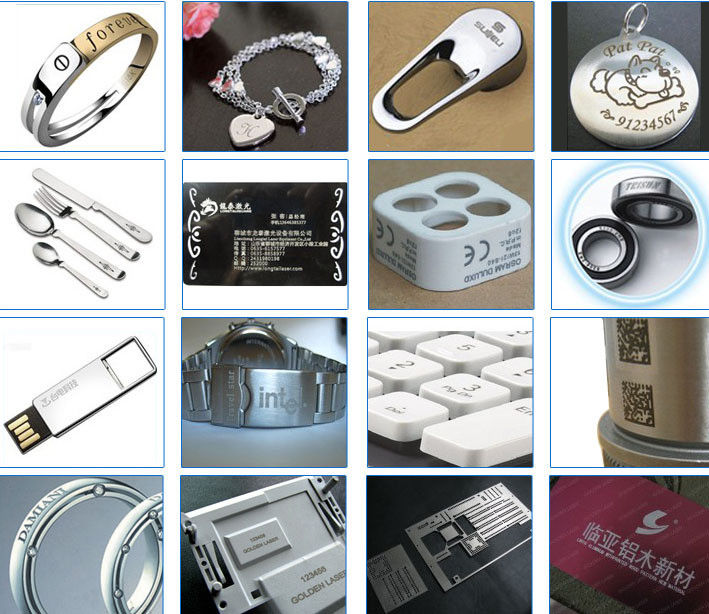

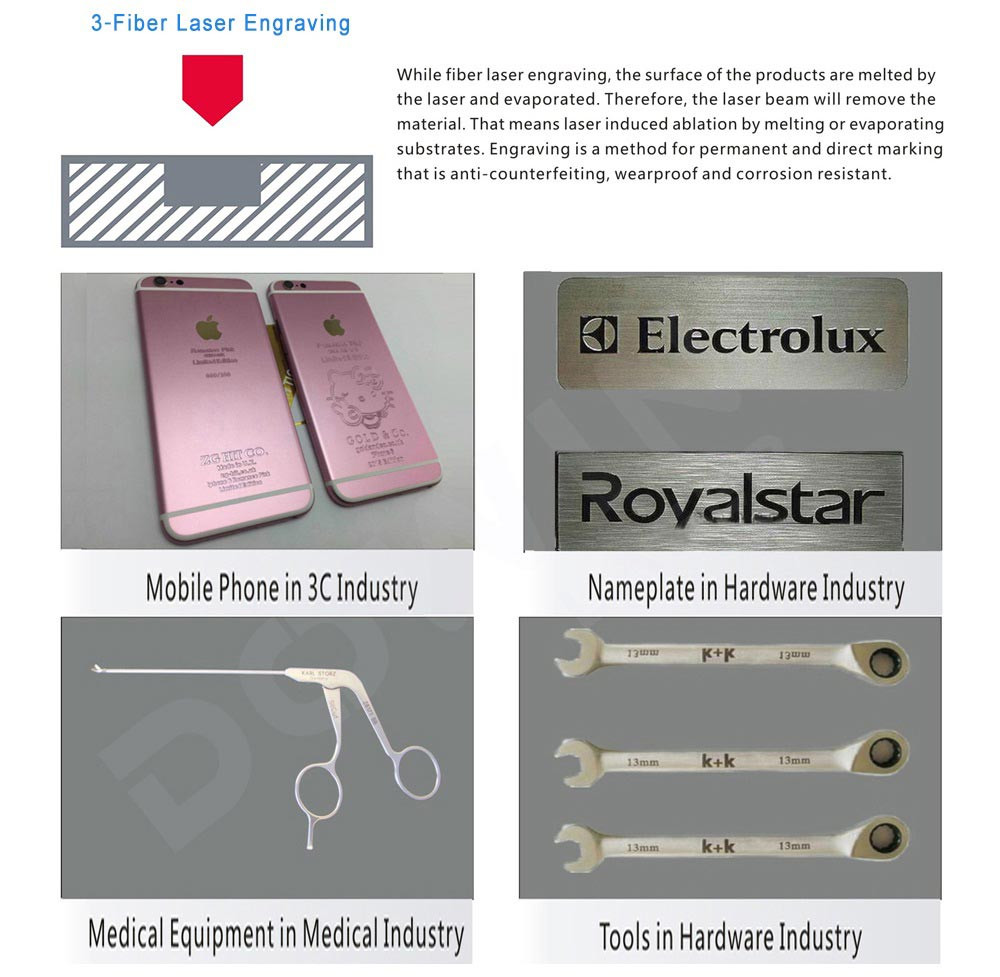

Materials & Application

1).Materials:Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

2).Industry:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Home use 20W 30W Mini Portable fiber laser marker for small business (3)
Home use 20W 30W Mini Portable fiber laser marker for small business (3)

Request

1.What is your main processing requirement? Laser cutting or laser engraving (marking) ?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. Your company name, website, Email, Tel (WhatsApp…)?Are you reseller or need it for your own business?
5. How do you want to ship it , by sea or by express , whether do you have your own forwarder?
