Big enclosure safety model fiber laser marking machine

Superior laser beam and uniform power density, stable laser power.
Quick speed without deviation, small volume, good stability, performance reached the international advanced level.
Enclosed design, environmental protection
High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
Mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

Send email to us

Get price

Details

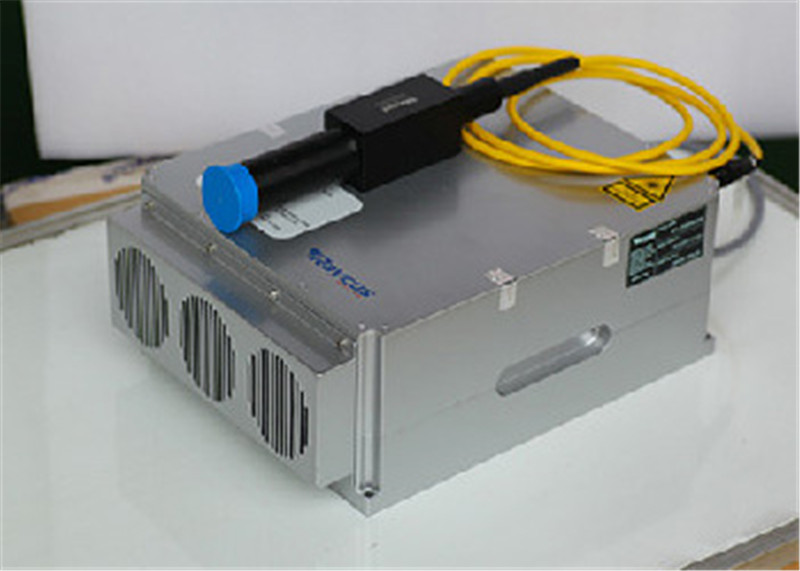

Laser generator
Original Raycus laser source,the best brand in China

Big enclosure safety model fiber laser marking machine (6)

Big enclosure safety model fiber laser marking machine (8)

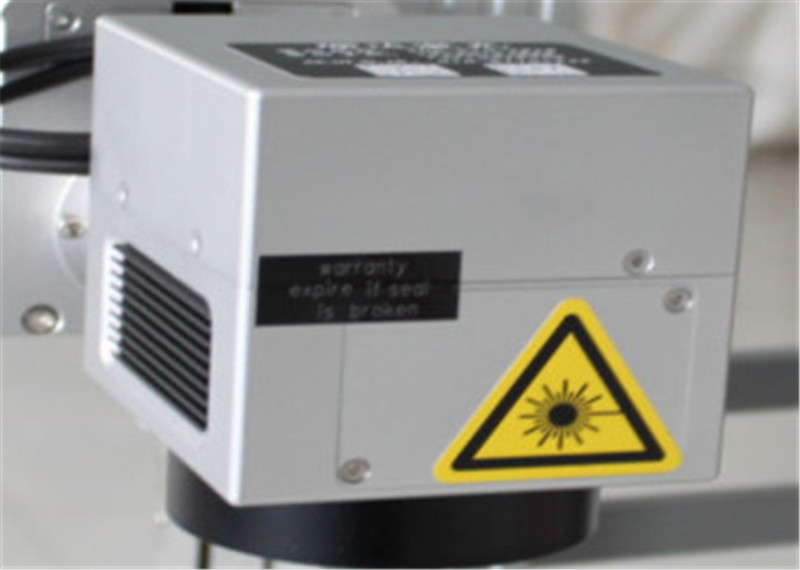

F-thata galvo scanner
Galvo laser head from Beijing Sino-galvo company
(stable,high reliable than other brand)

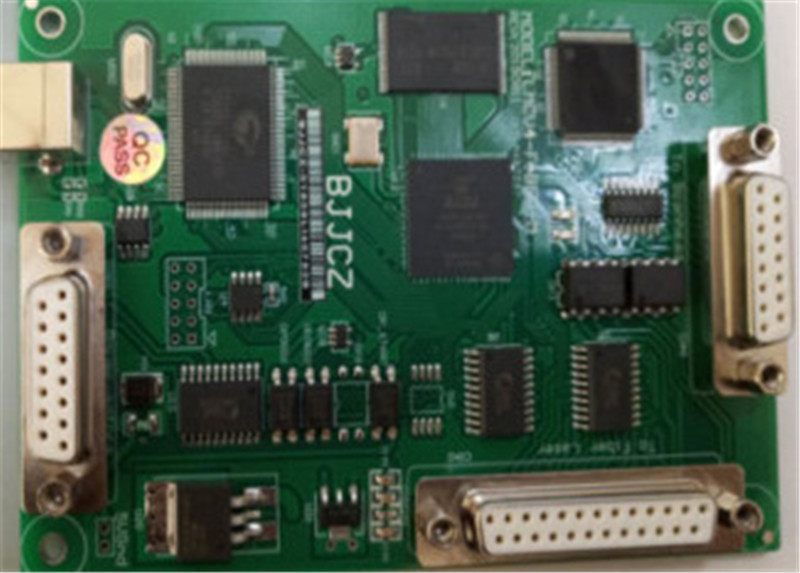

Control motherboard
Control card:original BJ EZCAD

Big enclosure safety model fiber laser marking machine (1)

Big enclosure safety model fiber laser marking machine (4)

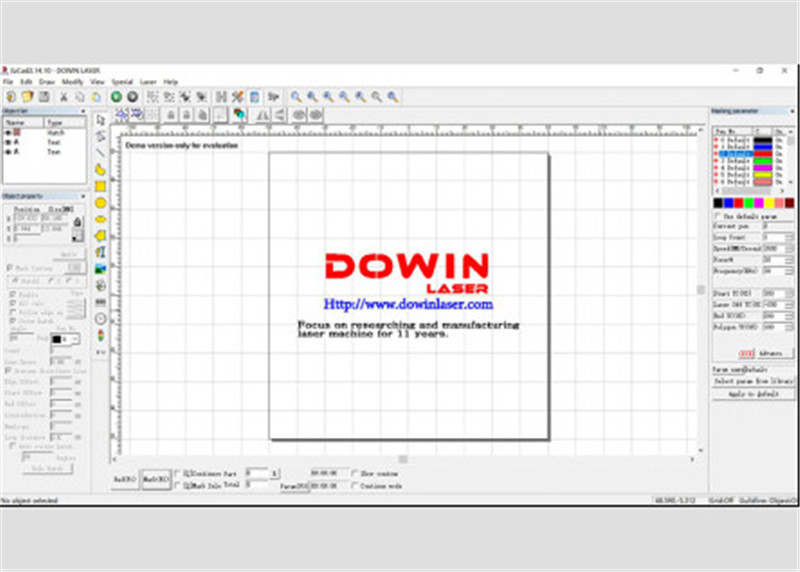

Control software
Professional fiber laser marking software,it support win7/8/win10

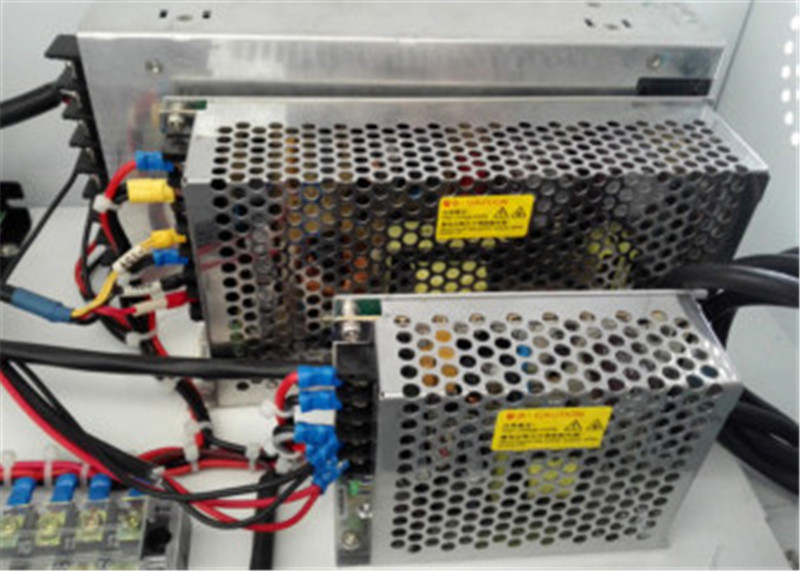

Power supply
TAIWAI MEAN WELL famous brand power supply,Stable performance
Support 100V~240V

Big enclosure safety model fiber laser marking machine (2)

Big enclosure safety model fiber laser marking machine (3)

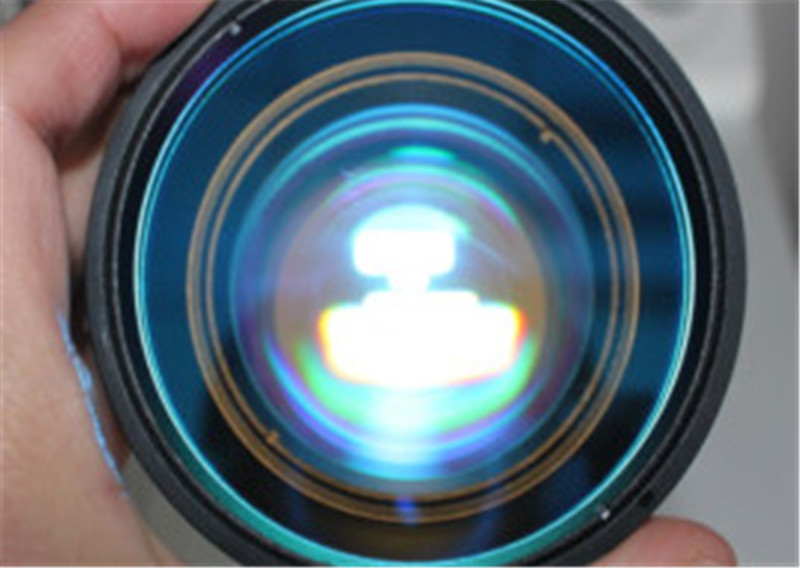

Lens: OPEX Lens from Wavelengh company

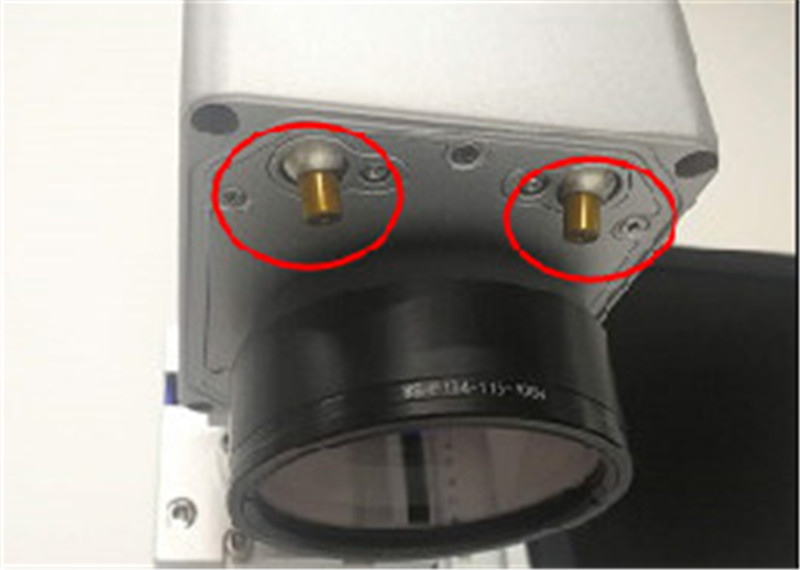

Double Red lights
Help you easily find the focus length

Big enclosure safety model fiber laser marking machine (5)

Big enclosure safety model fiber laser marking machine (7)

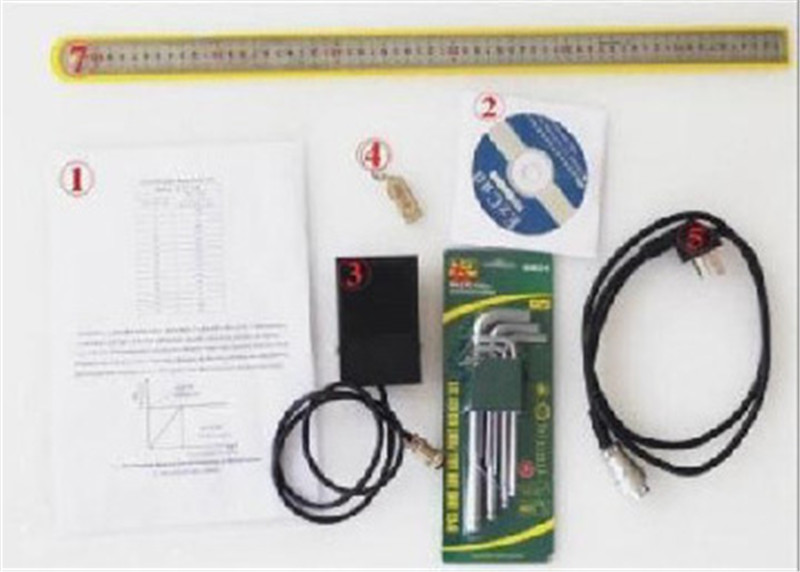

Spare parts
Foot padel, screw driver, USB flash driver...

Tech Specifications

Model	DW-20FBE
Laser source	Raycus
Laser Type	Fiber laser
Positioning Way	Red light pointer
Laser power	20W 30W 50W 100W
Laser Module Life	100000 hours
Weave length	1064 nm
Cooling Style	Air cooling
Graphic format supported	AI, DXF, DST, DWG, PLT, BMP, DXF, JPG, TIF, AI etc
Support operation system	Win7/8/10 system
Marking area	110mm110mm~300mm300mm
Total power	≤500W
Marking speed	7000mm/s
Operating Voltage	220v /110v 50~60Hz
Marking depth	0.01-1mm
Support system	Win XP,7,8,10 system
Repetition Precison	0.01mm
Certificate	ISO, CE
Minimum Character	0.01 mm
Control software	EZCAD software
Minimum Line Width	0.01mm
upported Format	PLT, DXF, DST, AI, SDT, BMP, etc.
Packaging Dimension	17285123CM
Gross weight	280KG

Application

Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.

Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising,logo
