Equipment Features
01
Fiber laser output Excellent laser beam quality,fast welding speed, can be equipped with robot or assembly line.
02
Controlled by PC, special software assisted, welding any point, straight line, circle, square or any plane graphic composed of straight line and arc.
03
CCD liquid crystal monitoring and observation system, can clearly observe product positioning and welding effect according to red light indication.
04
High elector-optic conversion rate, low energy consumption, no consumables, small volume,Can save a lot of processing cost for users after long term use.
05
It can be continuously and stably processed for 24 hours to meet the needs of industrial mass production and processing.
Video introduction

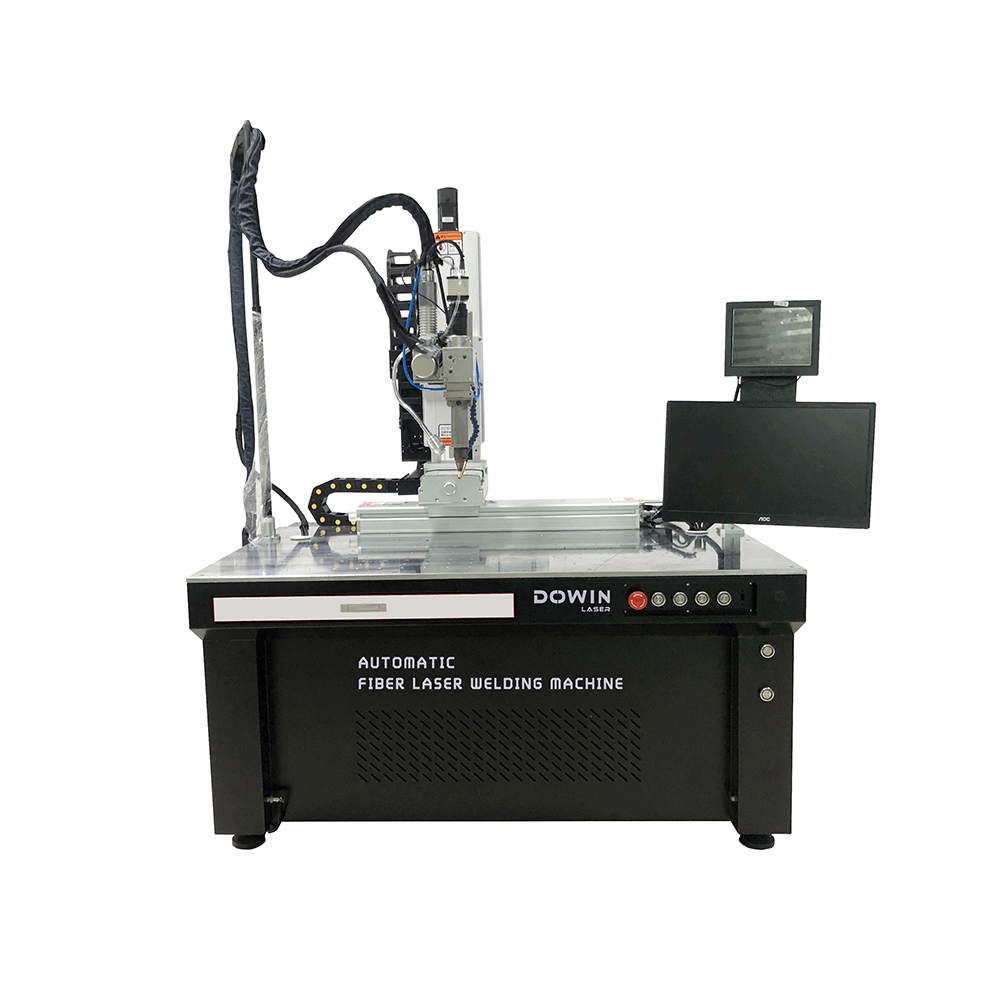

Tech Specifications
|
Model |
DW-AW1000/1500/2000W |
|
Laser Power |
1000W (optional 1500W/2000W) |
|
Laser source brand |
Raycus / JPT |
|
Laser source |
1000W continuous fiber laser (optional 1500W/2000W) |
|
Laser wavelength |
1070nm±5nm m |
|
Laser mode |
Multiple modes |
|
Working method |
continuous |
|
Average output power |
1000W |
|
Average power consumption |
3000W |
|
Power adjustment range |
5-95% |
|
Power instability |
≤2% |
|
Transmission fiber core diameter |
50um |
|
Minimum spot |
0.2mm |
|
Fiber length |
10m |
|
Standard configuration |
One set laser welding head,Water chiller,Computer with auto welding system,CCD camera,500*300*300mm Auto moving rails with servo motors,one set XY control system |
|
Options |
All kinds of special designed device according to client's production requirements |
