200W 400W YAG spot laser mold repairing welding machine

Features

● Using the anti- erosive, high-temperature resistant and ceramic reflector cavity,life-span of the cavity up to 8-10 years, and that of the Xenon more than 8 million times.
● Adopting the most advanced auto light-shielding system in the word to prevent the Laser from stimulating your eyes.
● The Laser head can rotate 360 degrees, and it uses the electric lift and drives horizontally.Electrical working table (XYZ) and laser path

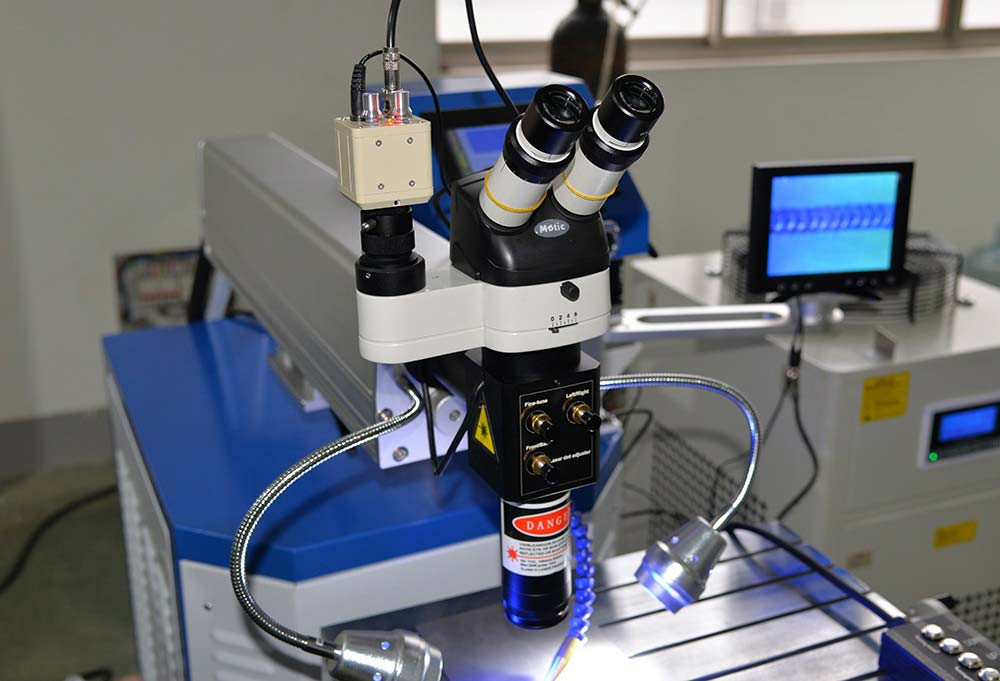

● Offer both Motic Brand Microscope and CCD viewing system..
● Auto wire feeder and Rotary (optional).

200W 400W YAG spot laser mold repairing welding machine (1)

Video introduction

Tech Specifications

Models	DW- 200W DW-400W
Machine Size (mm)	1100x900x1100mm 1300x1000x1500mm
Xenon lamp	1pcs 2pcs
Worktable Size(mm)	500x350 500x350
Travel Path(X, Y, Z)	X=300mm ,Y=200mm Manually(option Eclectic X&Y ). Electrically adjust Z Axis.
Worktable Bearing Load	100KG
Power Supply	220V(For 200W)/ 380V(For 400W)±10%,50Hz/60Hz
Laser Type	Nd:YAG Pulsed
Laser Spot	0.2-0.3mm
Wavelength	1064nm
Pulse Width	0.5-25ms
Max. Average Power	200W 400w
Pulse Frequency	0-100Hz
Focusing Size	150mm
Water Cooling System	Bingyue 1.8KW chiller Bingyue 2.8KW chiller
Protective Gas	Argon
Welding Wire Dimension	0.1-1.0mm
Whole Power	7KW 12Kw

Note: If your materials is special, dont know which type laser works ,please send it to us to test free.

Application materials

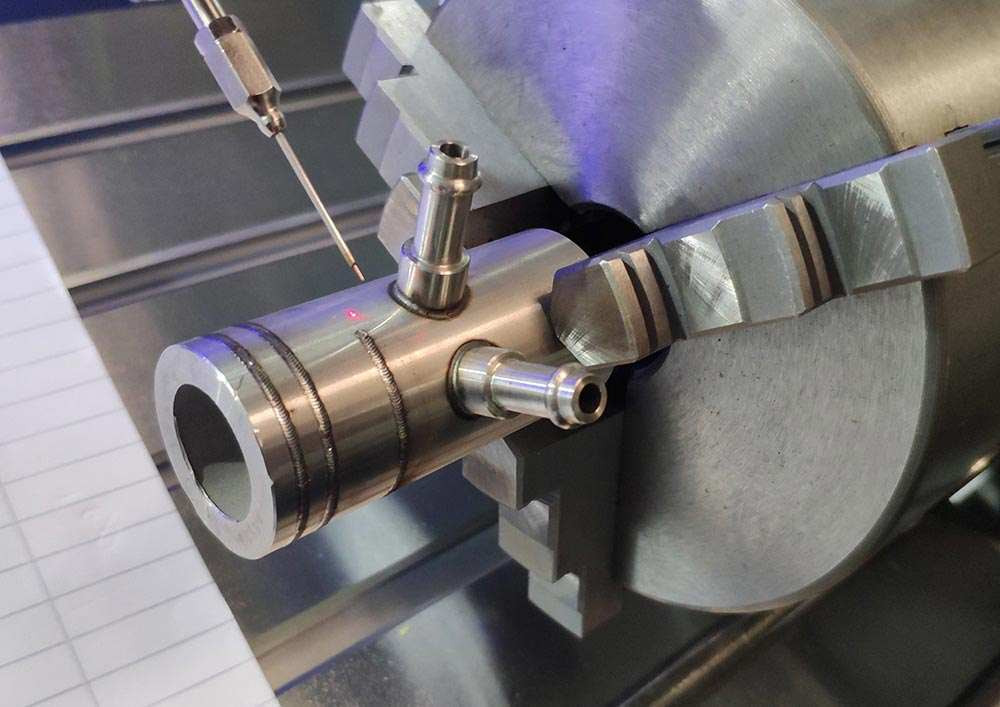

200W 400W YAG spot laser mold repairing welding machine meets the welding of various metals, alloys, steel, kovar alloy and other same materials, and also can meet the welding of copper nickel, nickel titanium, copper titanium, titanium molybdenum, brass copper, low carbon steel copper and other dissimilar metals.

Applicable Industry

Suitable for electronic components, mobile phone batteries, jewelry, sensors, watches, precision machinery, communications, elevator accessories, stainless steel door handle, stainless steel wine pot, communications, crafts, high-end cabinets, high-end furniture and other industries.
