60W 80W Desktop Laser engraving machine for Crystal Trophy

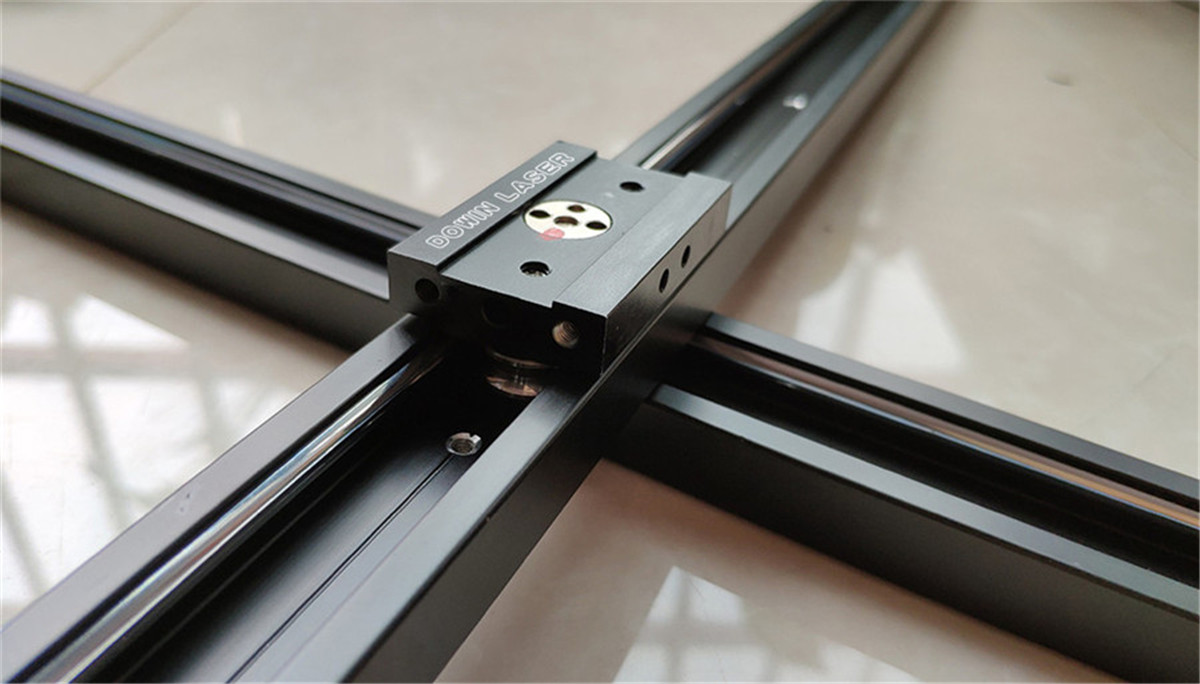

The X and Y axes use high-precision guide rails imported from South Korea.highest engraving precision laser machine  runs efficiently and stably for a long time.

 	 60W 80W Desktop Laser engraving machine for Crystal Trophy
60W 80W Desktop Laser engraving machine for Crystal Trophy

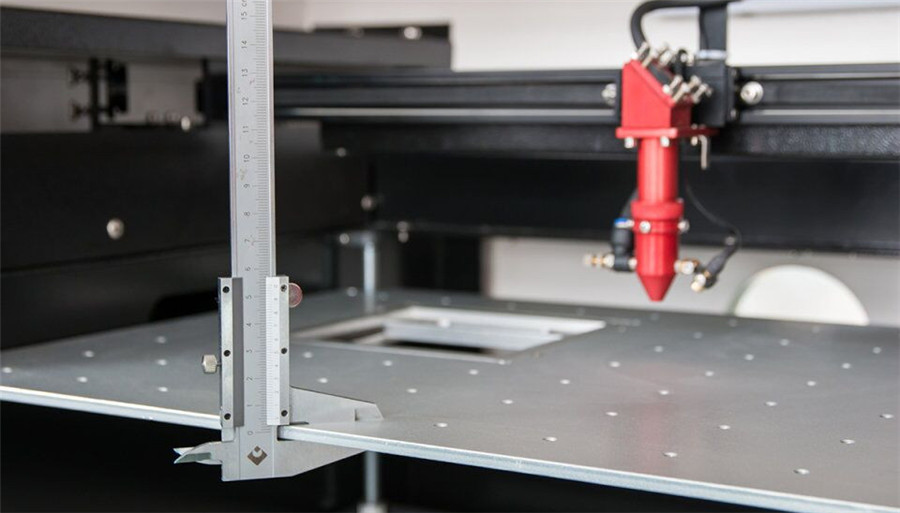

The With the focal length ruler on the right side of the laser engraving machine's working platform, the focus can be quickly determined without measuring the distance from the laser head to the material

Easy adjust laser engraving head with red focus ,5mm thickness alumina working table will never bend,table with screw holes and chuck jig, for easy positing Crystal Trophy

60W 80W Desktop Laser engraving machine for Crystal Trophy
60W 80W Desktop Laser engraving machine for Crystal Trophy

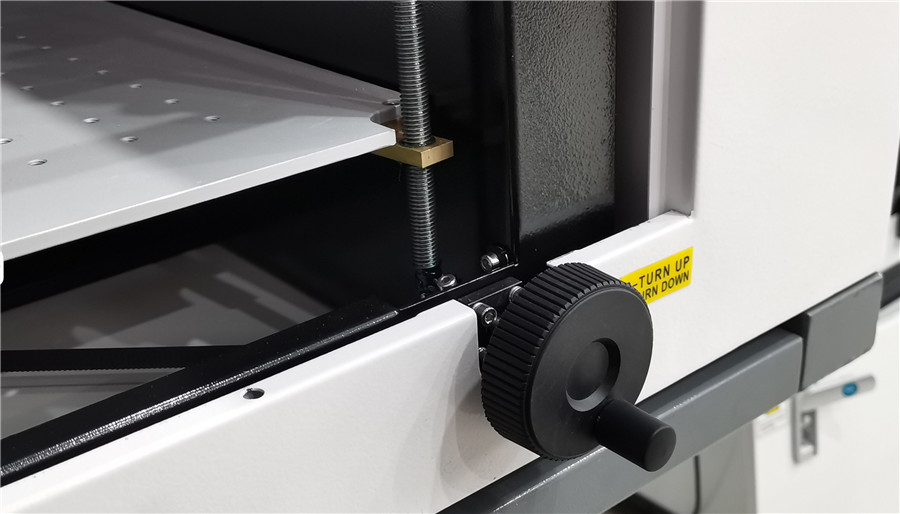

Manual up-down system, easy control , higher accuracy,no motors maintenance costs

Video introduction

DW-6040B laser machine engraves Glass and acrylic:

Tech Specifications

Model

DW-6040B

Processing area

600*400mm

Up-down system

Yes 0~250mm

Laser tube

60W / 80W

Engraving speed

0-30000mm/min

Cutting speed

0-3600mm/min

Software

Ruida software

Cooling system

 CW3000 industry chiller

Port

USB 2.0

Resolution ratio

0.005mm

Scanning Precision

4000DPI

Minimum character

Letter 1.0 x 1.0mm

Laser tube's life

More than 5000 hours

Power supply

220V±10% /50HZ , 110V±10%//60HZ

Display

LCD monitor system

Working table

Double honey and Aluminum alloy table

Standard configuration

Air compressor,exhaust fan, chiller included

Packing size

177*87*77cm

Packing Weight

175KG

Note: As products are constantly updated, please contact us for the latest specifications.

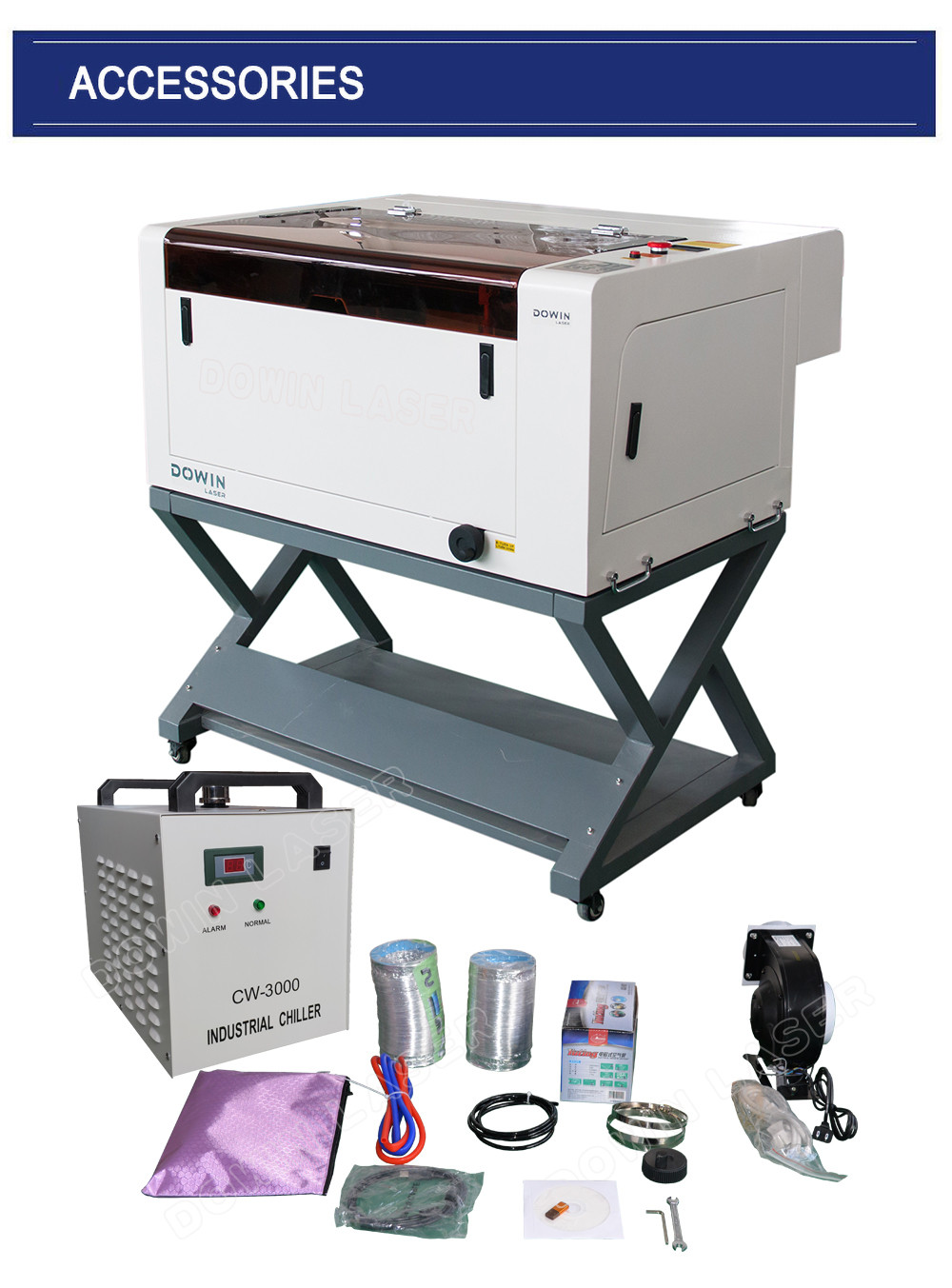

Free Standard accessories with Desktop Laser engraving machine DW-6040B:

60W 80W Desktop Laser engraving machine for Crystal Trophy

Application

This special designed 60W 80W Desktop Laser engraving machine for Crystal Trophy Ensure the accuracy higher than similar models on the market.Mostly use for crystal engraving ,and other nonmetal engraving or cutting,like Advertising industry, Office industry, Packing industry, Gift industry, Decoration industry, Printing Industry.

60W 80W Desktop Laser engraving machine for Crystal Trophy
60W 80W Desktop Laser engraving machine for Crystal Trophy

Request

1.What is your main processing requirement? Laser cutting or laser engraving (marking) ?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. Your company name, website, Email, Tel (WhatsApp…)?Are you reseller or need it for your own business?
5. How do you want to ship it , by sea or by express , whether do you have your own forwarder?
