300W CO2 laser cutting machine

Main Configuration
& Feature

1.300 watts Big power laser tube
2. High-strength integrated machine body
3. Y-axis unilateral ball screw servo drive
4. X-axis precision lead screw module servo drive
5. TBI lead screw, Taiwan CSK track
6. One-piece aluminum alloy gantry

7. Ruida edge-finding cutting system
8. Constant laser path design
9. Famous S&A brand industrial chiller CW6000
10. Super suction design, double funnel, double smoke pipe, two 750W exhaust fans
11. Multifunctional toolbox.

Video introduction

Tech Specifications

Working area	1300*2500MM
Laser power	300 W
Laser type	Sealed water cooling CO2 laser tube
Engraving speed	0-1000mm/s
Cutting speed	0-600mm/s
Repositioning accuracy	<0.05mm
Minimum shaping character	<1*1mm
Working voltage	AC110-220V±10%，50-60HZ
Control software	Art Cut, Photoshop CorelDraw, AutoCAD
Graphic format supported	PLT/DXF/DST/BMP/AI etc.
Packing size	380019601210mm
Gross weight	1000kg
Working temperature	0-45℃
Warranty	12 months, consumable parts excluded

Main configuration features

一	Machine part
1	Laser tube	1 PCS	Laser Tube 300W
2	Dedicated laser cutting head	1 Unit	DOWIN Customized

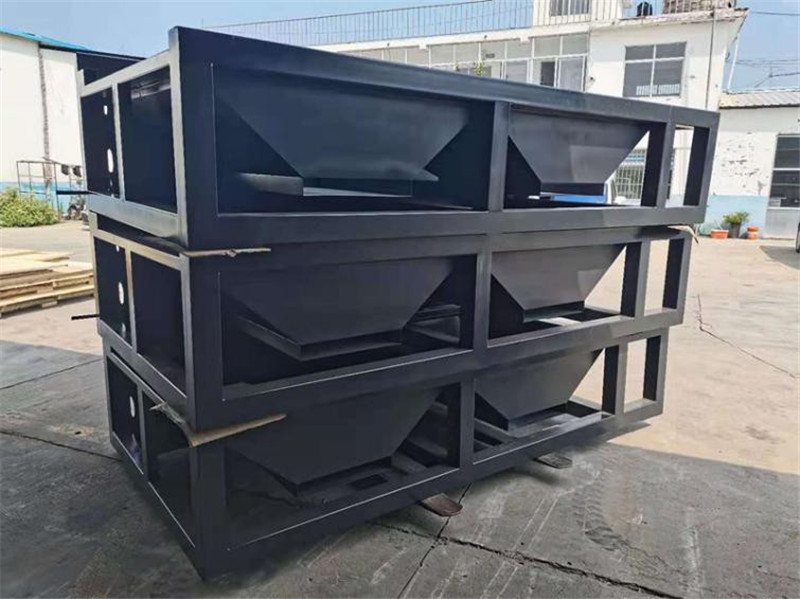

3	Machine bed	1set	Steel structure welding machine
4	Y-axis ball screw	1set	TBI lead screw
5	X-axis ball screw module	1set	TBI lead screw
6	Precision guide	unit	CSK
7	XY axis motor and driver	2unit	Leadshine Servo
8	Main electrical components	unit	High end
9	Control cabinet	1unit	Customized made
10	Machine tool accessories	unit	High end
11	CNC system	1unit	Ruida 6445G
12	S&A Famous brand Water Chiller	1unit	CW6000
13	Dust extraction device	1unit	Equipment matching

Machine detailed pictures

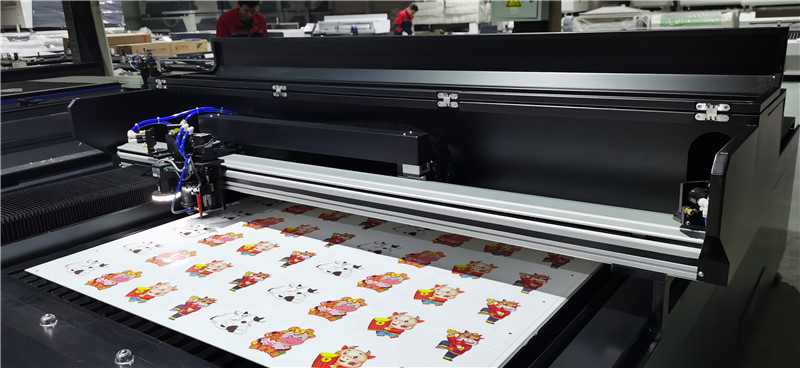

300W CO2 laser cutting machine

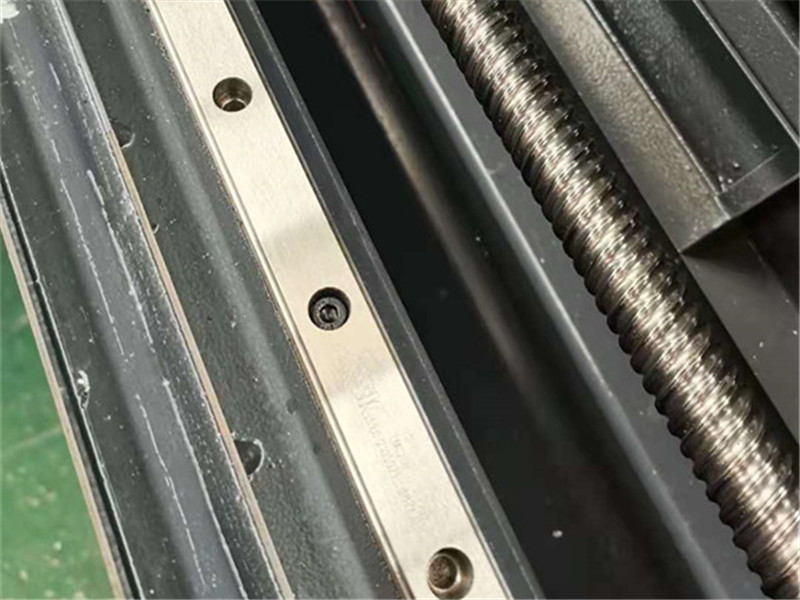

Y-axis single-sided ball screw

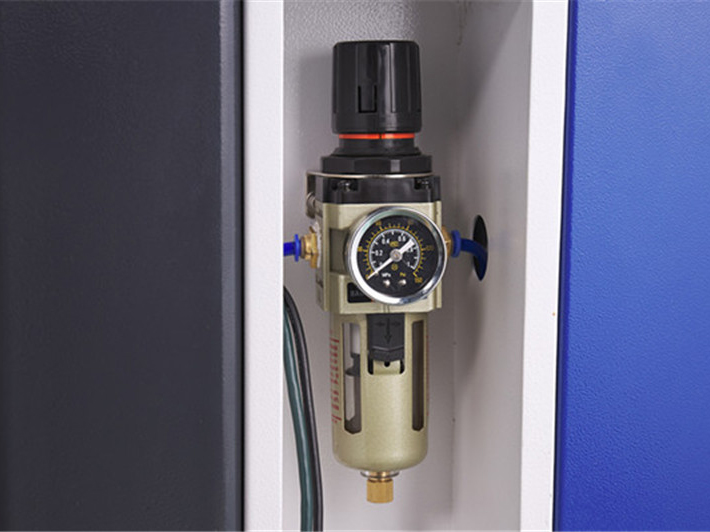

Water oil separator

300W CO2 big power laser cutting machine (8)

Exhaust fan 750W

300W CO2 big power laser cutting machine (5)

Leadshine Servo Motor Y-axis Dual Driver

300W CO2 big power laser cutting machine (10)

Mingyu laser power supply

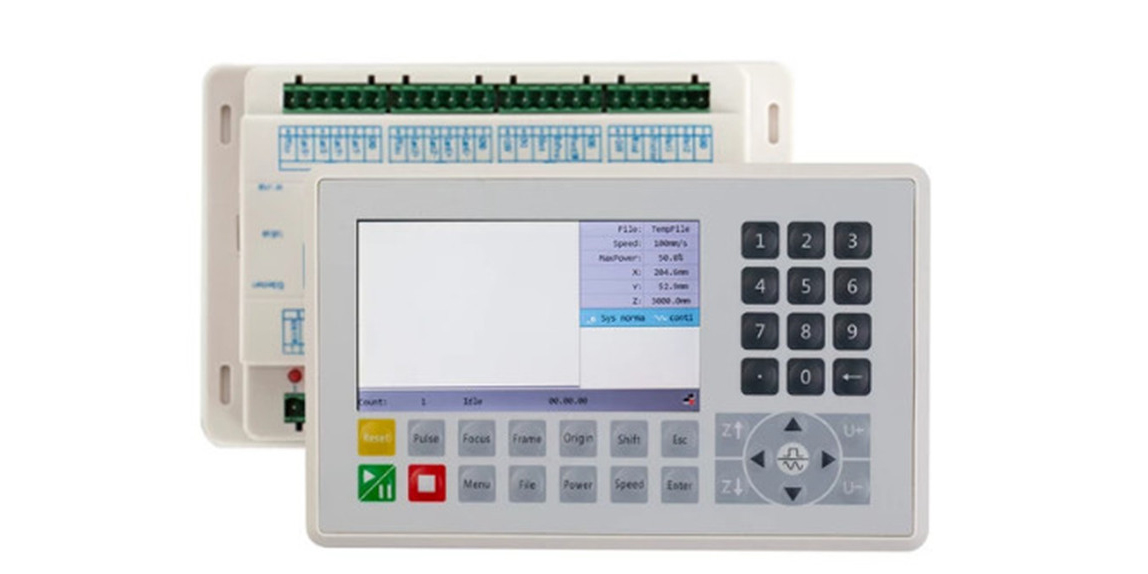

Ruida's latest offline color screen control card

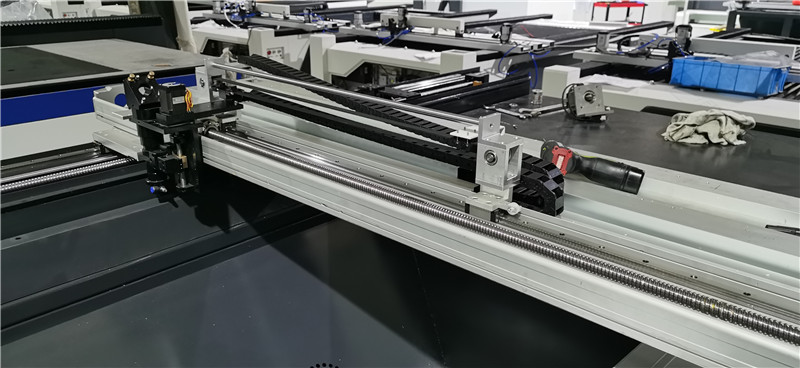

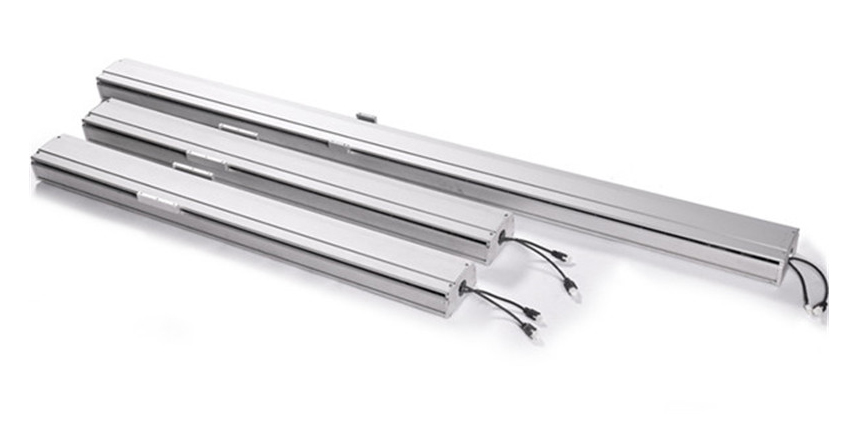

X-axis precision screw module

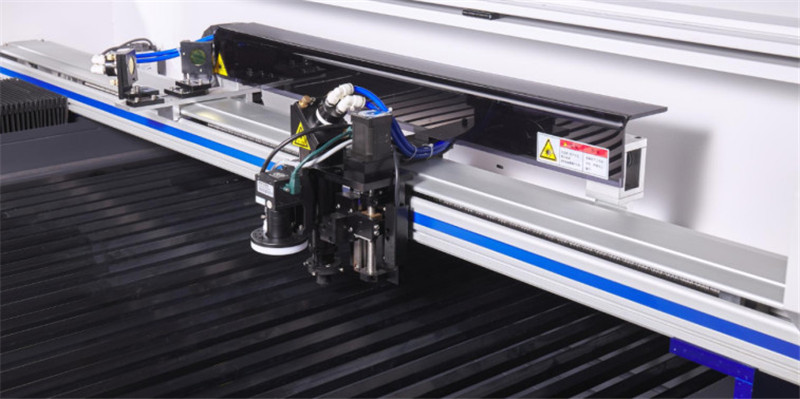

Constant laser path design

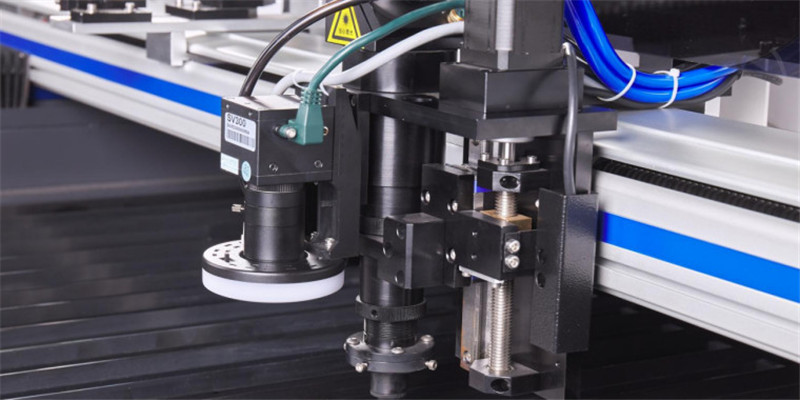

Ruida CCD edge-finding positioning system

Applicable industry and materials

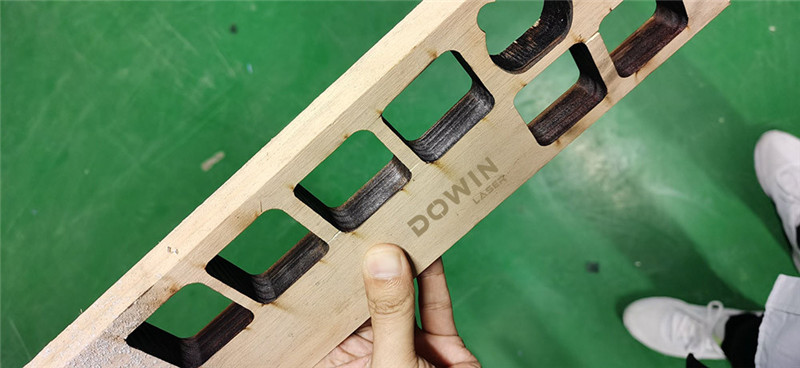

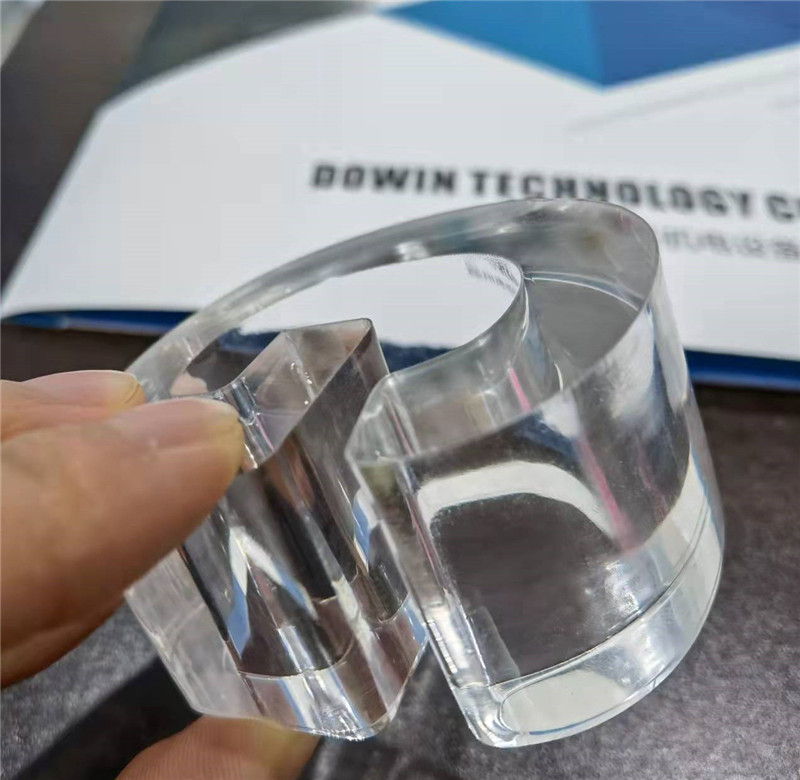

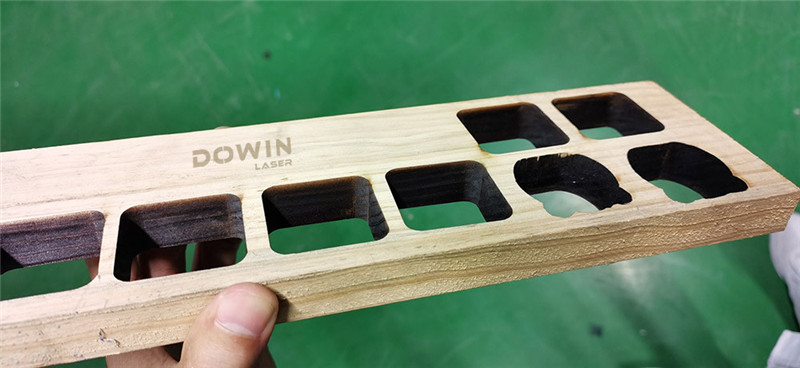

Suitable for thick acrylic and wood cutting, high-precision high-gloss organic materials .acrylic products cutting related industries, advertising industry, lighting industry, photo frame and other woodworking industries, architectural model industry, handicrafts, decoration industry, clothing proofing, leather industry, shoe industry, furniture industry, packaging and printing industry , craft gift industry, etc.
